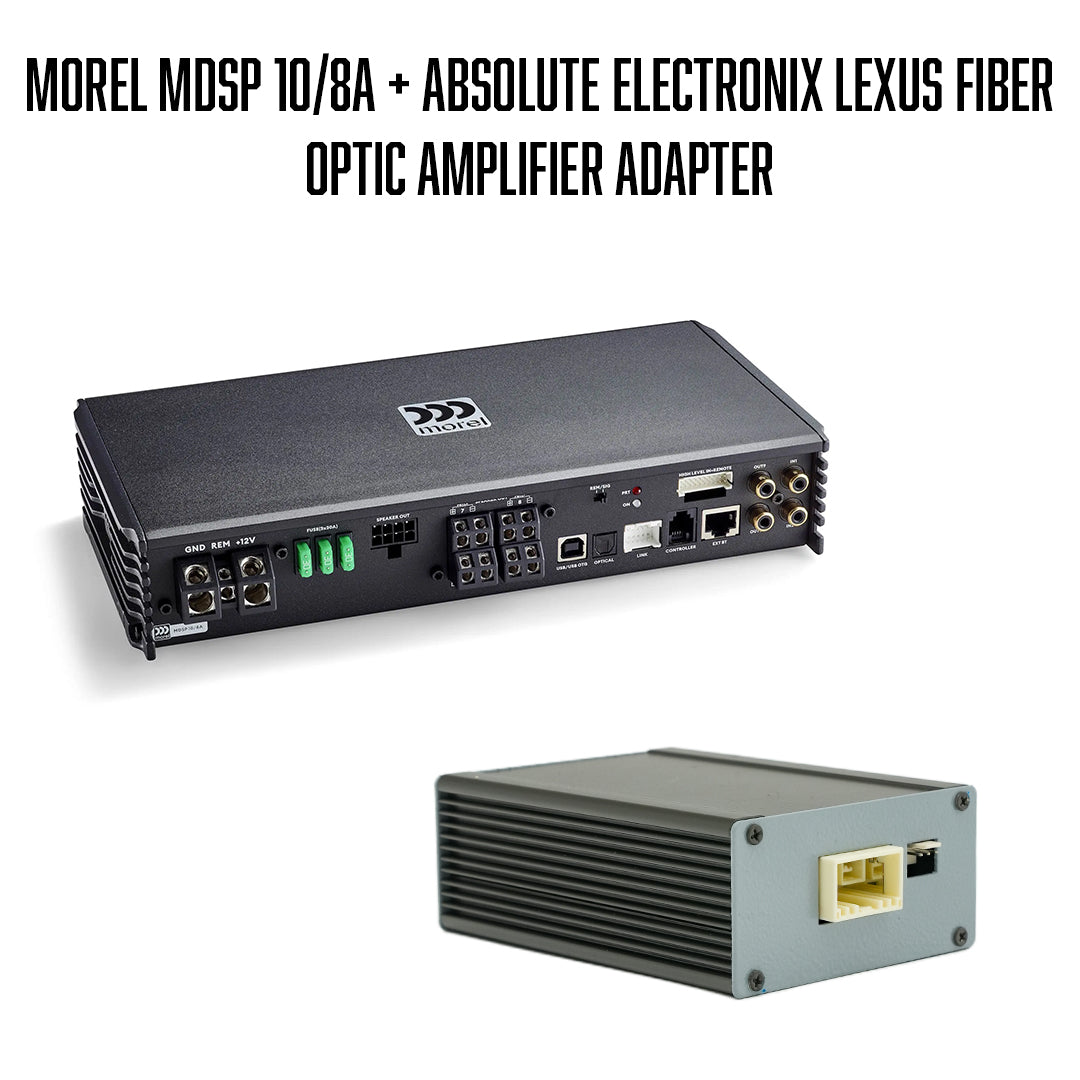

Absolute Electronix Lexus Fiber Optic Amplifier Adapter
Certain Lexus models equipped with factory amplified systems such as Panasonic and Mark Levinson use a fiber optic (MOST) audio network to communicate between the radio and the amplifier.
When integrating an upgraded amplifier into these systems, factory communication can be disrupted. This can lead to:
• Loss of volume control
• Steering wheel audio controls not functioning properly
• No sound output
• System communication errors
The Absolute Electronix Lexus Fiber Optic Amplifier Adapter is engineered to retain proper communication between the OEM head unit and your upgraded audio system.
This allows you to enhance your sound system while maintaining:
• Factory volume control
• Steering wheel audio functionality
• OEM system integration
• Proper signal communication
Designed specifically for Lexus fiber optic amplified systems, including select Panasonic and Mark Levinson setups.
If you are unsure whether your Lexus is equipped with a fiber optic audio system, contact us before ordering to confirm compatibility. YOU MUST HAVE A CERTAIN FACTORY CONNECTOR IN ORDER FOR THIS TO WORK SHOWN IN PICTURE.

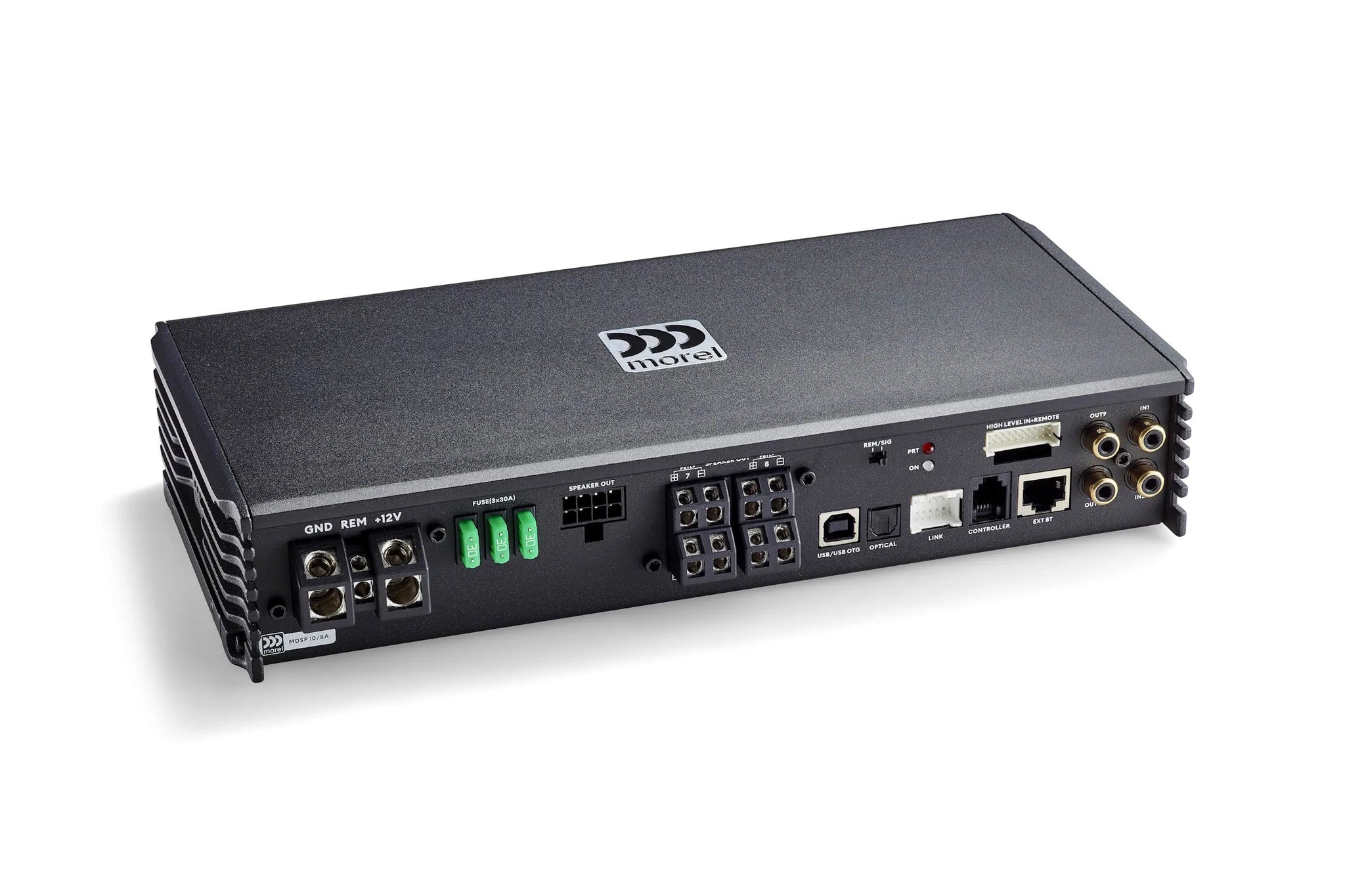

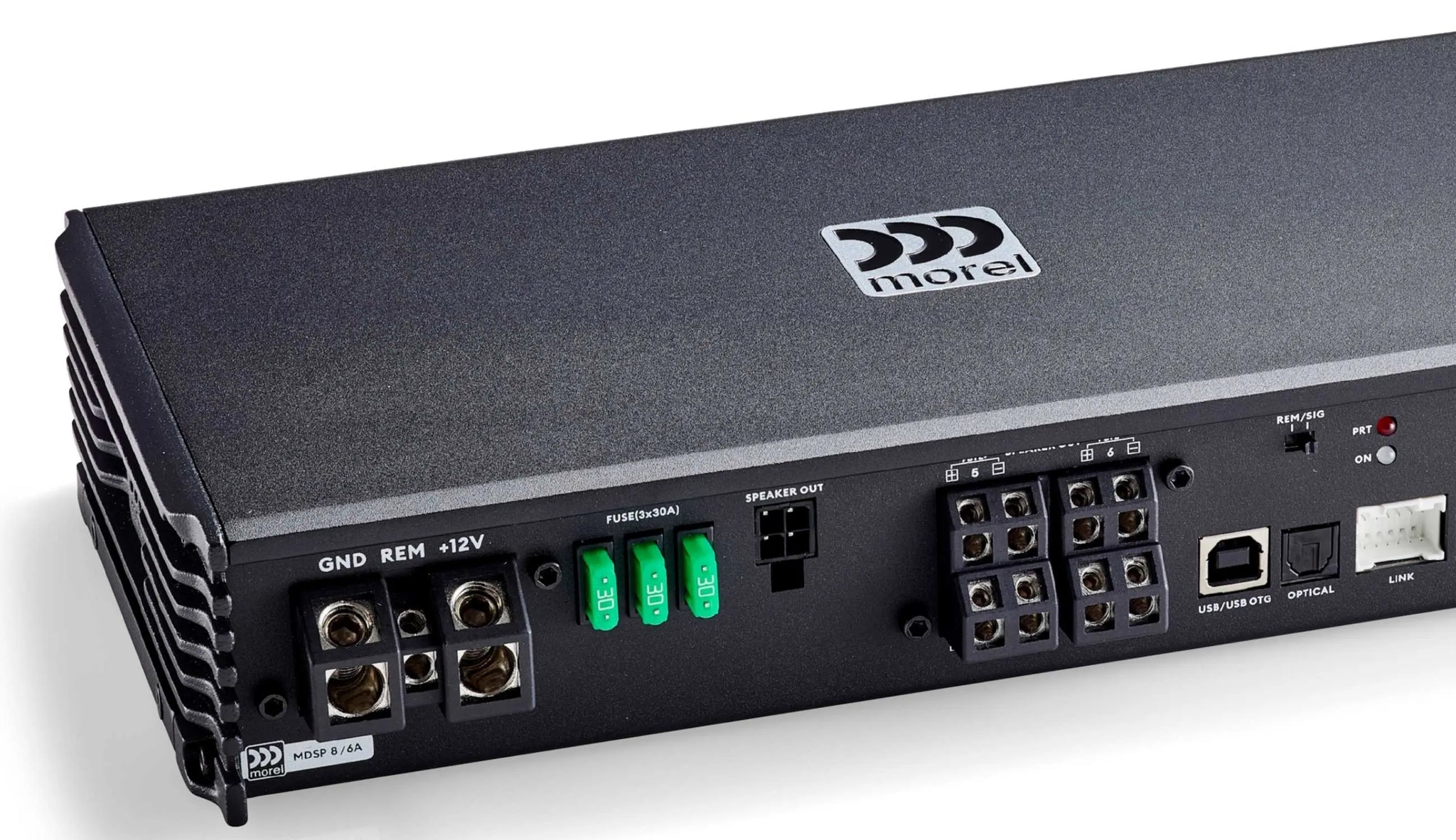

MDSP Amplifiers: Precision, Power, and Performance in One Compact Design
Developed to meet the demands of modern vehicle integration, the MDSP amplifier series delivers unmatched performance, flexibility, and sound quality in a remarkably compact design. Whether you're upgrading an OEM system or building a high-end custom setup, MDSP amplifiers provide the tools and power to get the job done right.
MDSP10/8A – Specifications
🔹 RMS Power @ 14V
-
4 Ohm: 80W x 4 + 160W x 4
-
2 Ohm: 160W x 4 (Channels 5–8)
-
Bridgable @ 2 Ohm: 320W x 2 (Channels 5–8)
🔹 Inputs
-
High Level (Speaker): 8 Channels
-
Low Level (RCA): 2 Channels
-
Optical: 1
-
USB OTG: 1
-
Bluetooth: Optional
-
DRC Connect (optional controller): Yes
🔹 Outputs
-
Amplified (Speaker): 8 Channels
-
Low Level (RCA): 2 Channels
-
Topology: Class D
🔹 Audio Specifications
-
Sample Rate: 24 Bit / 96kHz
-
THD + N: < 0.03%
-
Frequency Response: 20Hz – 20,000Hz
-
Signal-to-Noise Ratio (A-weighted): > 98dB
🔹 Dimensions
-
Height: 2.03" (51.6mm)
-
Width: 5.3" (136mm)
-
Length: 10.82" (275mm)
